Reliable Flexibility for Modern Piping Systems
Industrial piping systems are constantly exposed to mechanical stress, vibration, and thermal expansion. Without proper flexibility, these movements can lead to leaks, fatigue failures, or costly downtime. That’s where pipe expansion joints by Resistoflex come in — engineered solutions that ensure long-term reliability and efficient operation across demanding industries.
What Is a Pipe Expansion Joint?

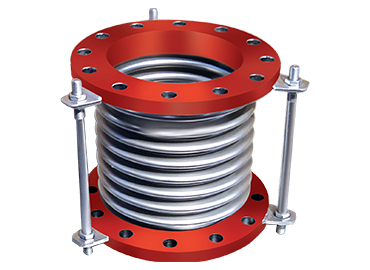

A pipe expansion joint is a flexible connector installed between two fixed sections of a pipeline. It compensates for axial, lateral, and angular movement, protecting connected equipment from thermal expansion, vibration, and misalignment. These joints are essential wherever temperature variation, system vibration, or structural settlement can affect pipe alignment.
By absorbing movement, expansion joints not only prevent mechanical damage but also enhance the operational life of pumps, compressors, and valves.
Why Choose Resistoflex Expansion Joints?
At Resistoflex, every expansion joint is designed with precision, durability, and reliability in mind. Our products combine engineering innovation with decades of manufacturing expertise, delivering flexible solutions for industries where performance cannot be compromised.
Key Advantages:
- In-house manufacturing with strict dimensional control.
- Low maintenance and long service life under cyclic stress.
- Wide compatibility for aggressive chemicals and extreme temperatures.
- Proven reliability in HVAC, defence, and industrial applications.
- Custom designs available for pressure, temperature, and space constraints.
Advanced Manufacturing Technology
Resistoflex uses a patented contour-molding process to manufacture PTFE (Teflon®) bellows for its pipe expansion joints. This advanced process results in:
- Uniform wall thickness across convolutions.
- Smooth stress flow lines that minimize fatigue.
- Lower activation forces for high-precision installations.
- Consistent performance even under severe vibration or pressure variation.
Each expansion joint undergoes rigorous testing to meet global performance standards before dispatch.
Construction and Material Excellence
Our pipe expansion joints are made with Virgin PTFE liners, chosen for their outstanding chemical inertness and temperature resistance. The construction combines flexibility with structural strength.
Key Components:
- Reinforcing Rings: Stainless steel or alloy rings to handle internal pressure.
- Flanges: Available in carbon steel, ductile iron, or stainless steel.
- Limit Devices:
- Limit Bolts – Restrict axial over-extension.
- Limit Cables – Offer angular and lateral flexibility.
- Limit Bolts – Restrict axial over-extension.
This blend of materials ensures reliable performance in the harshest industrial conditions.
Technical Performance and Reliability
Resistoflex pipe expansion joints are built to perform in critical environments where system integrity is non-negotiable.
- Working Pressure: Up to 200 psi (depending on size and configuration)
- Temperature Range: Up to 450°F (232°C) for construction
- Flex Life: Tested beyond 100,000 cycles under fatigue conditions
- Spring Rate: Low spring constant for sensitive applications
- Resistance: Immune to corrosion, chemical attack, and UV degradation
This makes them ideal for stress-sensitive systems like FRP, glass-lined, or precision load-cell-supported piping.
Design Considerations for Pipe Expansion Joints
When selecting a pipe expansion joint, several factors must be considered to ensure safe and effective operation.
1. Movement Type
Define the type and range of expected movement — axial, lateral, or angular — for accurate joint selection.
2. Pressure and Temperature Rating
Ensure the joint’s pressure and temperature limits exceed operating conditions with an adequate safety factor.
3. Material Compatibility
Use PTFE or rubber linings depending on the fluid’s chemical nature and process temperature.
4. Installation Guidelines
- Keep the joint at its neutral length during installation.
- Maintain proper pipe alignment and support.
- Do not twist or overextend the bellows.
- Use factory-set limit bolts and anchors correctly.
For other vibration and noise control accessories, check our Rubber Expansion Joints and Spring Isolators pages.
Applications Across Industries
Resistoflex pipe expansion joints are trusted across a range of sectors for their unmatched performance and longevity.
- Chemical & Petrochemical Plants: Handle corrosive and high-temperature media.
- Power & Energy Sector: Manage thermal growth in steam and condensate lines.
- HVAC Systems: Compensate for temperature fluctuations and reduce vibration noise.
- Water & Waste Treatment: Absorb surge loads and mechanical shock.
- Defence & Aerospace: Used in precision fluid systems where reliability is critical.
Every application benefits from the combination of flexibility, strength, and safety that Resistoflex offers.
Maintenance and Inspection
Regular maintenance extends the service life of pipe expansion joints and ensures system integrity.
- Inspect for surface cracks, deformation, or leakage.
- Verify that limit cables and bolts are intact and properly tensioned.
- Ensure no twisting or compression beyond rated limits.
- Replace joints showing visible wear or reduced flexibility.
Resistoflex provides maintenance guidelines and support for all installations, ensuring continuous uptime.
Why Industries Trust Resistoflex
- Decades of proven expertise in vibration, noise, and expansion control.
- Manufactured under stringent quality management systems.
- Designed for reliability in Defence, HVAC, Industrial, and Infrastructure applications.
- Backed by a strong after-sales network and technical assistance.
Explore our full range of products at www.resistoflex.in and experience precision-engineered solutions trusted across industries.
Conclusion
Pipe Expansion Joints by Resistoflex are more than flexible connectors — they are critical components that safeguard piping systems from stress, vibration, and thermal movement. Engineered with precision and built to last, they deliver performance that industries rely on every day.
To learn more or request a quotation, visit our Pipe Expansion Joint Page or click Enquire Now to get expert guidance from our technical team.
